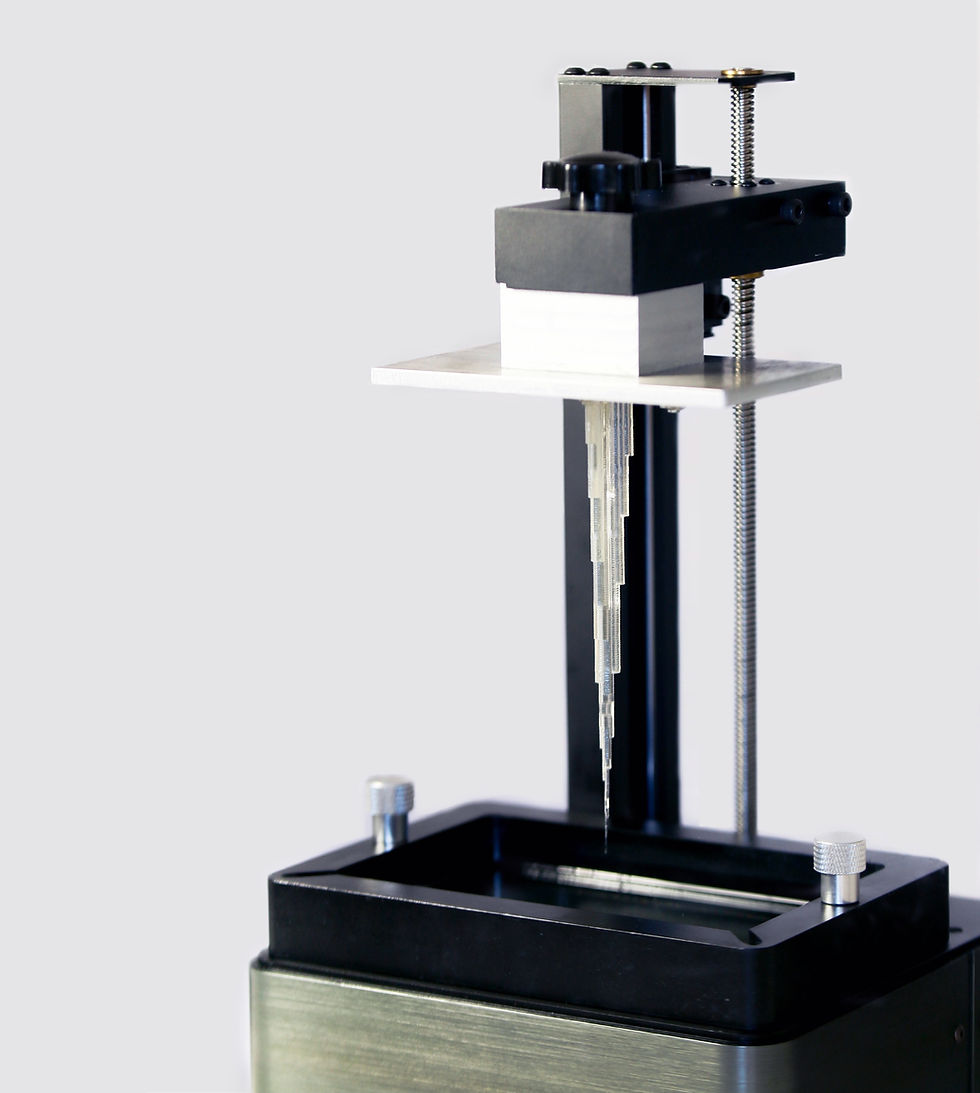

MODEL V (Manufacture refurbished)

MODEL V (Manufacture refurbished)

SKU: 009


High Resolution Desktop 3D Printer


Please take a few minutes to visit the MODEL V product page

And the MODEL V Tutorial page first to learn more about XAYAV MODEL V Desktop LCD 3D Printer.


Printer Specification:

Technology: LCD-based SLA 3D printer

Wavelength: 405 ~ 410 nm

Curing source: 30W UV LED

LCD screen: 2560x1440 (47 microns pixel size, 538 PPI)

Z accuracy: < 5 microns

Layer thickness: 15 ~ 150 um

Max. printing volume: 121x68x200 mm

Building speed: 10 ~ 50 mm/hour depends on the resin

Vat size: 184x126 mm (outer)

152x94 mm (inner)

Vat volume: 350 ml (270 ml with the platform in)

Slice Software: Creation Workshop

NanoDLP (requires additional hardware)

Firmware: XAYAV MODEL V custom firmware

Resin type: Most 405nm UV 3D printing resin

Printer Size: 20x19x40 cm

Printer Weight: 5 kg

Power input: 85 ~ 265 VAC 47 ~ 63 Hz 2000mA Max.

Warranty: 1-year limited warranty

Product origin: Designed in USA, assembled in USA


What is included?

MODEL V 3D Printer x1

Vat (come with FEP film) x1

Vat Thumb Nut x2

Platform x1

Platform Thumb Screw x1

Accessory Box x1

Inside the Accessory:

Warning Card x1

Warranty Card x1


Power Cable x1

USB Cable x1

HDMI Cable x1

Gloves x3

Allen Wrench (2mm) x1

Allen Wrench (2.5mm) x1

Replacement FEP sheets x3

Plastic Scraper: x1

Replacement Vat Screws: x4


Ships in 2-3 business days once clear payment has been received.


Manufacturer recommended age: 13 Years and up.


XAYAV MODEL V 3D printer is not a toy. Children younger than 13 years old to use XAYAV MODEL V 3D printer under parental supervision is highly recommended.
